KRIX MX-20 Modular Speaker System

$14,995.00
(No reviews yet) Write a Review
SKU:
MX-20
Availability:
Call to order (other MX modular systems are also available)

KRIX MX-20 MODULAR SPEAKER SYSTEM

  • Behind screen cinema quality speakers
  • Easy to install
  • Krix Infinite Baffle Wall


Designed for dedicated home cinemas with an acoustically transparent screen, the MX-20 will deliver your favourite movie soundtracks with supreme definition and accuracy, right through the picture and into your seat.



EXPERIENCE REALISM


For a wall of sound that plunges through the big screen, the MX-20 will provide the impact you’re looking for. With every aspect optimised to deliver the most faithful reproduction of movie soundtracks, from a whisper to the explosion immediately after, these modules provide a true commercial cinema experience at home.

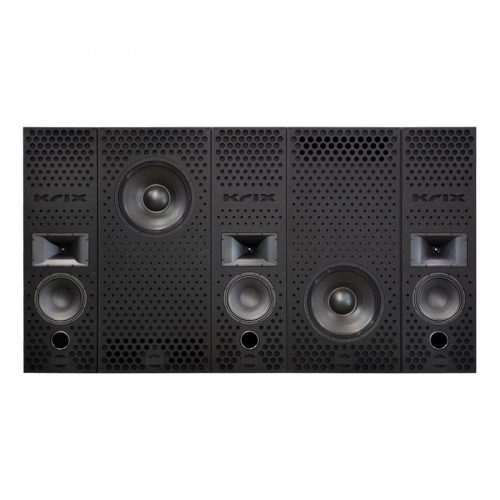

The MX-20 is designed for cinema rooms four to seven metres long.  This system comprises five modules, all of which are the same height and a slim line depth of just 295mm for simple installation into a wall cavity. The front baffle of each module is covered with an acoustic absorbent material to absorb any sound reflecting off the back of the screen or the room itself. This assists greatly with the acoustic treatment of the room to ensure better intelligibility and overall sound performance.



The main speakers feature a 255mm mid-bass driver which has a 50mm voice coil developed to offer low harmonic distortion, especially in the critical midband.



The high frequency drive unit is a damped, high power, 26mm doped fabric dome tweeter, coupled with a proprietary Krix waveguide, for optimum dispersion over the entire working bandwidth. Each subwoofer contains a large 380mm paper cone driver with a 100mm edge-wound copper voice coil, dual spider assembly, and vented magnet assembly.



For the ultimate cinema experience at home, play it through Krix.



SPECIFICATIONS

LCR Speaker Modules



Frequency Range
40Hz-20kHz in room response

Power Handling
100 – 500 Watts RMS recommended amplifier power

Sensitivity
97dB for 2.83 volts at 1 metre

Impedance
8 Ohms

Configuration
2-way

Enclosure Type
Bass reflex, front vented

Low Frequency Driver
Single 255mm (10”) paper cone driver. 50mm (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion

High Frequency Driver
26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide

Input Terminals
Gold plated spring terminals

Dimensions
1220mm high x 365mm wide x 295mm deep (2210mm wide including subwoofer modules)


Subwoofer Modules



Frequency Range
25Hz-500Hz in room response

Power Handling
200 – 1400 Watts RMS recommended amplifier power

Sensitivity
96dB for 2.83 volts at 1 metre

Impedance
8 Ohms

Enclosure Type
Bass reflex, front vented

Low Frequency Driver
Single 380mm (15”) paper cone driver. 100mm (4”) edge-wound copper voice coil, dual spider assembly and vented magnet assembly

Input Terminals
High level gold plated spring terminals

Dimensions
1220mm high x 550mm wide x 295mm deep (2210mm wide including LCR modules)



System Recommendations



Recommended Room Depth
4m – 7m

Min. Screen Size 16:9
100″ (2210mm x 1243mm)

Minimum Screen Size 21:9
120″ (2806mm x 1184mm)
