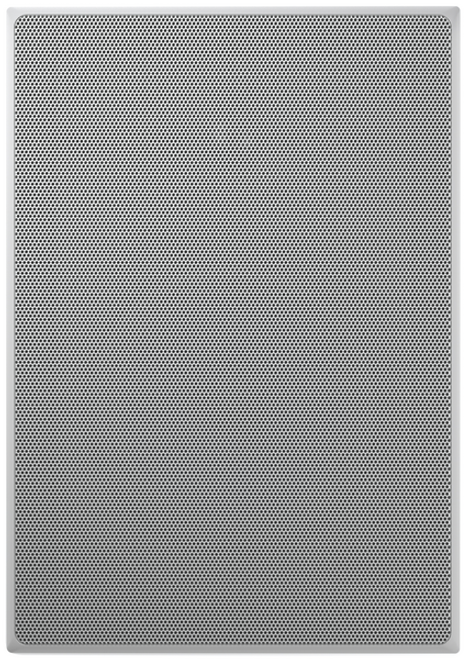

CWM652
See nothing, hear everything
The CWM652 features a 130mm (5in) blue Aramid Fibrebass/midrange
driver housed in a die-cast chassis which provides the extra rigidity to
provide a cleaner,faster bass.Its aluminium tweeter incorporates a
Nautilus™tube to absorb unwanted sonic radiation. The CWM652 also
utilises a three-position high frequency switch to fine tune the sound. The
incredibly easy to install frame includes QuickDogs™and plug-and-play
functionality.
Technical Specifications
Description 2-way in-wall system
Drive units 1x ø25mm (1in) Nautilus™tube loaded aluminium
dome tweeter
1x ø130mm (5in) blueAramid Fibrecone bass/midrange
Frequency Range (-6dB) 54Hz – 50kHz
Maximum Amp Power 25 – 100w
Sensitivity SPL (2.83V, 1m) 86dB
Impedance Nominal (min) 8Ω(4.5Ω)
Frame height 264mm (10.9in)
Frame width 191mm (7.5in)
Cut-out height 228mm (9in)
Cut-out width 153mm (6in)
Depth behind surface 95mm (3.7in)
Protrusion 4mm (0.2in)
Pre-mount Kit PMK W5
Back Box BB 6W
